WARNING! No warranty is provided for MOSFETs mounted outside our service center!

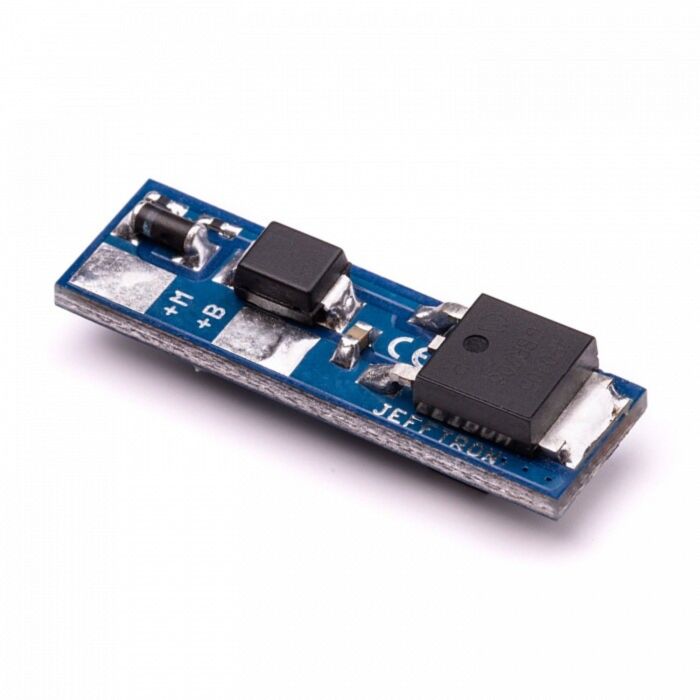

This MOSFET is specifically designed for electric airsoft guns, featuring an active break for the motor. In semi-automatic mode, the piston is not partially stretched, the spring is completely released, and the gearbox parts are not subjected to tension. The nozzle more effectively seals the hop-up chamber, depending on the rate of fire (ROF). The active break addresses the issue of double shots in semi mode, particularly beneficial for guns with a high rate of fire. This device enhances the gun's rate of fire and extends battery life compared to standard wiring.

Specifications:

- Compact Size: The MOSFET's small dimensions (27x10x7mm) ensure it fits almost anywhere.
- Easy Installation: The pre-soldered cable facilitates a faster and easier installation in the gun. The cables are long enough for all gun types; simply cut to the required length and attach the included connectors.
- Quality Cables: Comes with 1.5 qmm (AWG16) power cables with thin and rigid MPPE insulation, and a 0.34 qmm (AWG22) blue signal wire with MPPE insulation.
- Water Protection: The board is covered with a conformal layer, protecting the device against water.
- Installation Options: If you prefer to use your own cables, choose the version without cables.
- Spring Compatibility: Designed for springs up to M160 (equivalent to a current of 75A for single shots or 25A in burst for a maximum of 30 seconds).
- Battery Compatibility: Suitable for common batteries up to 17V (Ni-xx 8.4 - 12V, LiPo 7.4 - 14.8V).
- Active Break: Utilizes surplus motor energy to stop it, offering the strongest braking effect with high torque motors.
- Connections: Equipped with 6-wire connection.
- No Idle Consumption: No current consumption in idle mode.
- Spark-Free: No sparks on the switch contacts.
- Auto Mode: In auto mode, the piston stops in random positions due to gearbox design.
- Proper Operation: Requires a functional stopping lever in the gearbox, selector plate, reverse lock, trigger, and trigger block, adhering to gearbox standards.

Package Includes: Micro Active Brake II MOSFET with Jefftron wiring, Male Dean T connector, 30A mini fuse, 4 female faston connectors (2.8mm), 6 black heat shrink tubes (3.2mm x 20mm), 3 black heat shrink tubes (4.8mm x 20mm), and an English installation manual.
